Windows Embedded Standard 7 SP1: Keyboard filter (3/4)

This is the third post that concerns "keyboard filter". In the previous post, after introducing the topic, we discussed how to insert the "Keyboard Filter" package into the Windows Embedded Standard 7 build, how to manage its service and how to configure it in general. In this post we will go into more details on how to "Configure and test predefined key combination" and "Configuring custom filters"

Configure and test predefined key combination

Start the Local Group Policy Editor (gpedit.msc) with administrator privileges and select the Keyboard Filter. Select the shortcuts you want to block. In this example, we want to block the following combinations: Ctrl+Alt+Del, Windows+R, and the Shift key.

1. Verify that the key combinations mentioned above are working properly.

a. Press Windows+R.
You should see the Run ... dialog box.

Run-ENG

b. In the Run dialog box, press the key combination Shift+A.
You should see a capital letter.

Windows-Live-Writer/Windows-Embedded-Standard-7-SP1-Keyboard_14691/Shift-A-ENG_3.jpg

c. Finally, press Ctrl+Alt+Del.
You should see the screen with options to lock the computer, change users, etc.

SecureDesktopScreen-ENG

d. Press the Esc key to return to your desktop and close the Run dialog box.

2. The predefined key combinations are grouped into categories. Inside the Security Keys folder, you will find the Block Secure Desktop (Ctrl+Alt+Del) setting.

a. To enable this lock combination, double-click on settings.

b. Select the Enabled option in the top left of the dialog box, and press OK.

Windows-Live-Writer/Windows-Embedded-Standard-7-SP1-Keyboard_14691/Block Secure Desktop (Ctrl+Alt+Del)-ENG_3.jpg

Note: The Enabled option blocks the key combination. This enables the filter, not allowing the keys combination.

c. In the left pane, select Keyboard Filter.

d. Select Desktop and Shell Keys.

e. Select Block Run Dialog (Windows + R).

f. Double-click, select Enabled and press OK.

Windows-Live-Writer/Windows-Embedded-Standard-7-SP1-Keyboard_14691/Block Run Dialog (Windows+R)-ENG_3.jpg

g. In the left pane, select Keyboard Filter again.

h. Select Modifier Keys.

i. Double-click on Block Shift Keys.

j. Select Enabled and press OK.

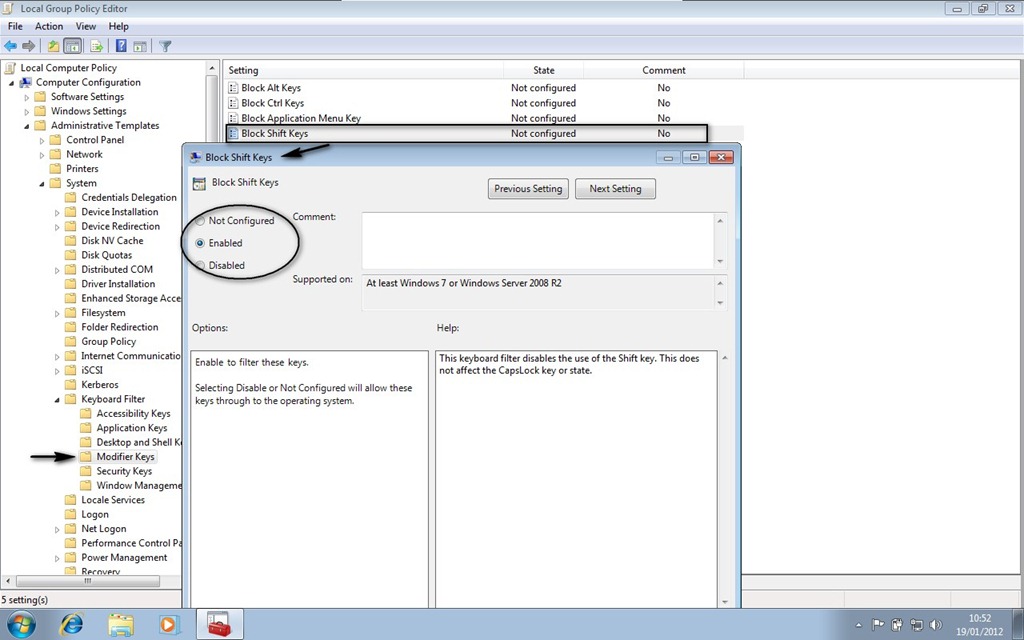

Block Shift Keys-ENG

k. Wait at least five seconds from the moment you press the Apply button or OK.

The Local Group Policy Editor (gpedit.msc) may require more time to save the settings, especially on slower hardware or on systems in domains.

Note: An event is logged in Windows Event Viewer when the filter keyboard loads the new settings and becomes active.

Event wiever-ENG

l. Check the key combinations that you just configured.

If everything worked, should be disabled: Ctrl+Alt+Del would not bring up the screen with options to lock the computer, change users, and so on ...; Windows+R should not bring up the Run dialog box .... Any keys combination with the Shift key would not work, and the capital letter is a good example to prove that this does not work.

Nota: Keyboard filtering is disabled on the secure desktop. Try logging off the system. You can then enter Shift+A for an uppercase A in the password field. Disabling keyboard filtering guarantees that that users and administrators can successfully log on to the computer.

Configure custom key combinations

The part of custom key combination filters allows you to create shortcuts NOT included in the predefined group.

To encode the filters must be adhered to a number of rules and limitations, but let's start with a couple of definitions that will serve us later:

- By "modifier keys", we mean those that are used in combination with other keys: Ctrl, Alt, Shift and Windows. you can also specify if they are left or right: LCtrl, RCtrl, LAlt, RAlt, LShift, RShift, LWindows and RWindows.

- Filters should be expressed with a combination that contains zero or more modifier keys and a character, number, function or cursor key, delimited by a plus symbol.

Here are some notes which follow:

· The modifier keys cannot be given alone (for this you can use the predefined filters);

· To create filters for a capital letter, select Shift+<letter>. For example, if you filter the Z key, you lock only lowercase z. To filter the capital Zyou need to filter forShift+Z.

· To filter a number, you must also filter the same key in the numeric-pad. For example, if you want to block the 8 key, you must also filter the Up key. This way you cannot filter the number 5 of the numeric pad.

· If you filter the numeric keypad keys (Up, Down, Left, Right, Home, End, Page Up, Page Down), the keys will be locked for the corresponding numbers. The line numbers above the letters will continue to operate normally.

· You can filter the function keys F1 through F24 keys and CapsLock, PrintScrn, ScrollLock, Break, Tab, Space, Backspace and Esc. Remember to do not put spaces in the names, but they can be written both uppercase and lowercase.

· You can filter the keys: Up, Down, Left and Right (arrows moving); PageUp, PageDown, Insert, Delete, Home and End. Do not put spaces in the names that can be written in both uppercase and lowercase.

· When you create a filter for the navigation arrows: Up, Down, Left, Right, and so on is also good to remember to filter the combinations with the Shift key to ensuring that a combination Shift+Up (for example) obstruct the filter on Up .

Here are examples of custom filters:

· Windows+L

· LWindows+L

· Ctrl+Break

· Shift+Ctrl+Esc

· Ctrl+C

· Ctrl+Enter

_______________________________

In the next post of this article, we will deal with how "Configure Keyboard Filters for Non English Keyboards" and "Filters keyboard and screen keyboard".

These articles, divided into post, were written, revised and translated into English as well as by me by other two colleagues of mine (both Microsoft Certified Trainer for Windows Embedded Standard 7): Gianni Rosa Gallina and Dorangela Daniele.
